Threshold-wise testing procedure for testing functional-on-scalar linear models

Source: R/lm-twt.R
TWTlm.Rd

The function is used to fit and test functional linear models. It can be used to carry out regression, and analysis of variance. It implements the Threshold-wise testing procedure (TWT) for testing the significance of the effects of scalar covariates on a functional population.

Usage

TWTlm(formula, dx = NULL, B = 1000L, method = c("residuals", "responses"))

twt_lm(
  formula,
  dx = NULL,
  n_perm = 1000L,
  method = c("residuals", "responses")
)

Arguments

formula

An object of class stats::formula (or one that can be coerced to that class) specifying the model to be fitted in a symbolic fashion. The response (left-hand side) can be either a matrix of dimension \(n \times J\) containing the pointwise evaluations of \(n\) functions on the same grid of \(J\) points, or an object of class fda::fd.

dx

A numeric value specifying the discretization step of the grid used to evaluate functional data when it is provided as objects of class fda::fd. Defaults to NULL, in which case a default value of 0.01 is used which corresponds to a grid of size 100L. Unused if functional data is provided in the form of matrices.

B

An integer value specifying the number of permutations used to evaluate the p-values of the permutation tests. Defaults to 1000L. Passed as n_perm in iwt_aov(), twt_aov() and global_aov().

method

A string specifying the permutation scheme. "residuals" permutes residuals under the reduced model (Freedman-Lane scheme); "responses" permutes the responses (Manly scheme). Defaults to "residuals".

n_perm

An integer value specifying the number of permutations for the permutation tests. Defaults to 1000L.

Value

An object of class flm containing the following components:

  • call: The matched call.

  • design_matrix: The design matrix of the functional-on-scalar linear model.

  • unadjusted_pval_F: A numeric vector of length \(J\) containing the unadjusted p-value function of the global F-test evaluated on the grid.

  • adjusted_pval_F: A numeric vector of length \(J\) containing the adjusted p-value function of the global F-test evaluated on the grid.

  • unadjusted_pval_part: A numeric matrix with one row per model term containing the unadjusted p-value functions of the per-term t-tests.

  • adjusted_pval_part: A numeric matrix with one row per model term containing the adjusted p-value functions of the per-term t-tests.

  • data_eval: A numeric matrix containing the functional response evaluated on the grid.

  • coeff_regr_eval: A numeric matrix containing the functional regression coefficients evaluated on the grid.

  • fitted_eval: A numeric matrix containing the fitted values of the functional regression evaluated on the grid.

  • residuals_eval: A numeric matrix containing the residuals of the functional regression evaluated on the grid.

  • R2_eval: A numeric vector containing the functional R-squared evaluated on the grid.

Optionally, the list may contain the following components:

  • pval_matrix_F: A matrix of dimensions \(p \times p\) of p-values of the interval-wise F-tests. Element \((i,j)\) contains the p-value of the test on the interval \((j, j+1, \ldots, j+(p-i))\). Present only if correction is "IWT".

  • pval_matrix_part: An array of dimensions \((L+1) \times p \times p\) of p-values of the per-term interval-wise t-tests. Element \((l,i,j)\) contains the p-value of the joint test on term \(l\) and interval \((j, j+1, \ldots, j+(p-i))\). Present only if correction is "IWT".

  • global_pval_F: Global p-value of the overall F-test. Present only if correction is "Global".

  • global_pval_part: A numeric vector of global p-values of the per-term t-tests. Present only if correction is "Global".

References

Abramowicz, K., Pini, A., Schelin, L., Stamm, A., & Vantini, S. (2022). “Domain selection and familywise error rate for functional data: A unified framework. Biometrics 79(2), 1119-1132.

D. Freedman and D. Lane (1983). A Nonstochastic Interpretation of Reported Significance Levels. Journal of Business & Economic Statistics 1(4), 292-298.

B. F. J. Manly (2006). Randomization, Bootstrap and Monte Carlo Methods in Biology. Vol. 70. CRC Press.

See also

iwt_lm(), twt_lm() and global_lm() for calling a specific correction directly. plot.flm() for plotting the results and summary.flm() for summarizing the results.

Examples

# Defining the covariates
temperature <- rbind(NASAtemp$milan, NASAtemp$paris)
groups <- c(rep(0, 22), rep(1, 22))

# Performing the TWT
TWT_result <- TWTlm(temperature ~ groups, B = 100L)
#>
#> ── Point-wise tests ────────────────────────────────────────────────────────────
#>
#> ── Threshold-wise tests ────────────────────────────────────────────────────────
#>
#> ── Threshold-Wise Testing completed ────────────────────────────────────────────
# Summary of the TWT results
summary(TWT_result)
#> $call
#> functional_lm_test(formula = formula, correction = "TWT", dx = dx,
#>     B = n_perm, method = method)
#>
#> $ttest
#>             Minimum p-value
#> (Intercept)               0 ***
#> groups                    0 ***
#>
#> $R2
#>               Range of functional R-squared
#> Min R-squared                  3.390203e-05
#> Max R-squared                  5.399620e-01
#>
#> $ftest
#>   Minimum p-value
#> 1               0 ***
#>

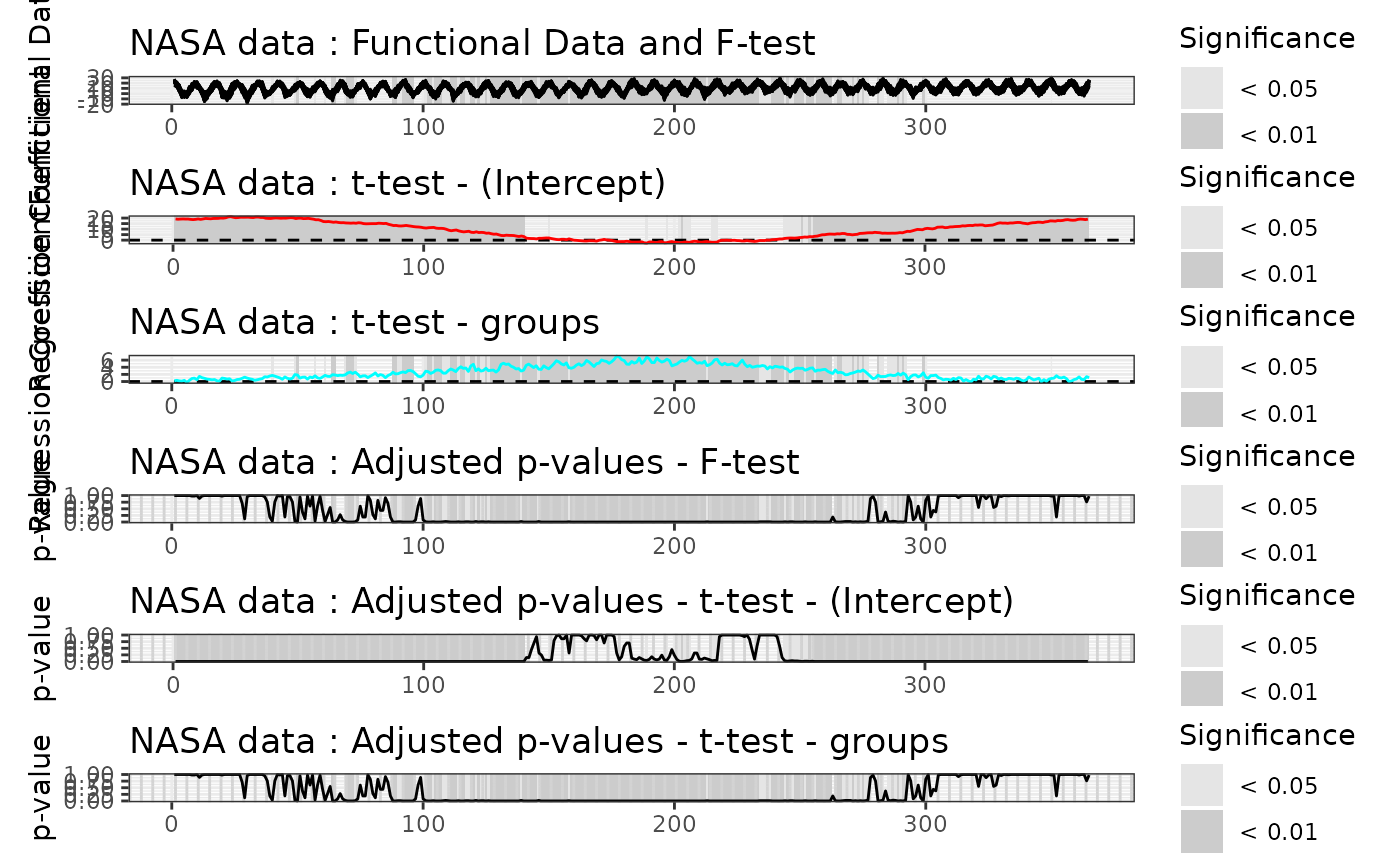

# Plot of the TWT results
plot(
  TWT_result,
  main = "NASA data",
  plot_adjpval = TRUE,
  xlab = "Day",
  xrange = c(1, 365)
)
